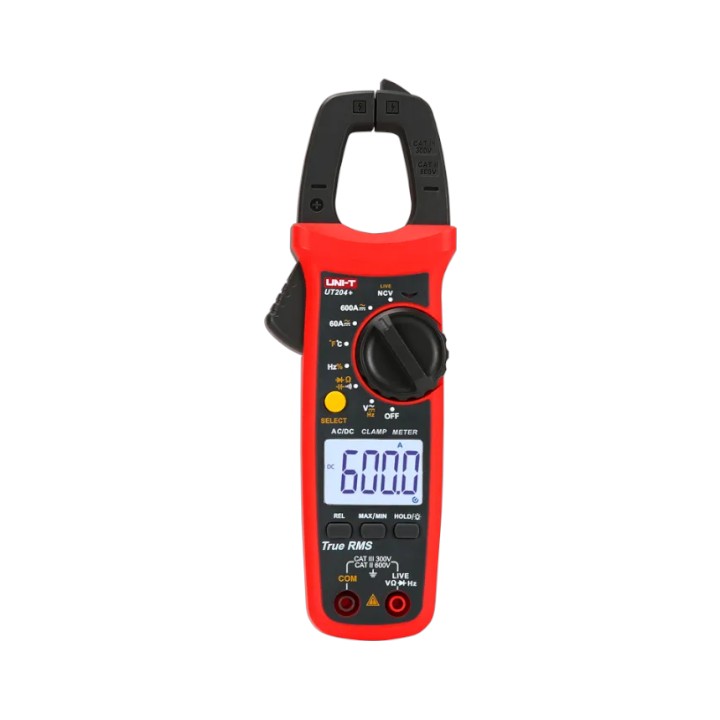

UNI-T UT204+ Digital Clamp Meter

SKU:

582YY

Price:

৳4,200.00

Quantity:

Available:

In stock

What's App Order

True RMS for precise readings on non-linear loads
Measures up to 600A AC/DC current and 600V AC/DC voltage
NCV function for safe non-contact voltage detection
Temperature measurement with included thermocouple
Frequency and duty cycle analysis
Auto range and data hold functionality

২৪/৭ কাস্টমার সাপোর্ট

ফোন ও WhatsApp সাপোর্ট

১০০% নিরাপদ কেনাকাটা

ক্যাশ অন ডেলিভারি সুবিধা

সারা বাংলাদেশে ডেলিভারি

নির্ভরযোগ্য কুরিয়ার সার্ভিস

~ অর্ডার কনর্ফাম করার সময় অবশ্যই ফোন নাম্বার ব্যাবহার করুন। অর্ডার কনফার্ম করার পর আমাদের প্রতিনিধি ফোনে যোগাযোগ করবে ~

UNI-T UT204+ Digital Clamp Meter In Bangladesh

The UNI-T UT204+ Digital Clamp Meter in Bangladesh. Get the original products at the most affordable price at KODDAX and enjoy the quality with the promise of the best customer service in Bangladesh.

The UNI-T UT204+ is a professional-grade True RMS clamp meter designed for accurate and safe measurement of AC/DC voltage, current, resistance, capacitance, frequency, and temperature. Ideal for electricians, technicians, and DIY users, this meter offers non-contact voltage detection (NCV), a large backlit display, and multiple safety ratings for reliable performance in demanding environments.

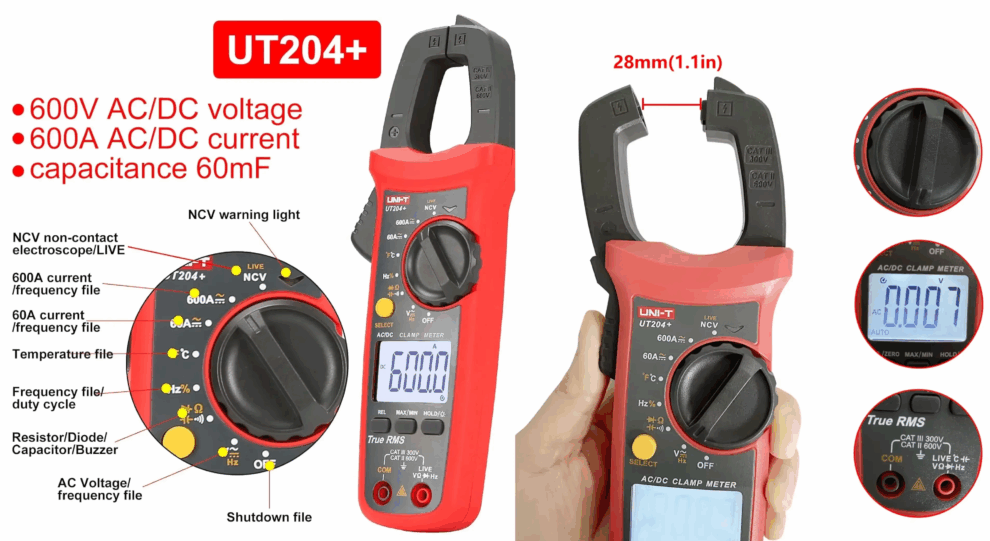

Features

True RMS for precise readings on non-linear loads
Measures up to 600A AC/DC current and 600V AC/DC voltage
NCV function for safe non-contact voltage detection
Temperature measurement with included thermocouple
Frequency and duty cycle analysis
Auto range and data hold functionality
MAX/MIN recording and ZERO reset
Large LCD screen with backlight for low-light use
CAT III 300V / CAT II 600V safety rating
Durable clamp with 28mm jaw opening

Specifications

Voltage Range: 600V AC/DC
Current Range: 600A AC/DC
Capacitance: Up to 60mF
Resistance: Up to 60MΩ
Frequency: Up to 10MHz
Temperature: -40°C to 1000°C
Display Count: 6000
Clamp Opening: 28mm
Safety Rating: CAT III 300V / CAT II 600V
Power Supply: 2 x AAA batteries
Dimensions: 215mm x 63mm x 36mm
Weight: Approx. 280g

How It Works

Rotate the dial to select the desired measurement mode (AC/DC current, voltage, resistance, etc.)
Use the clamp to measure current without direct contact by clamping around the conductor
Insert test leads into the COM and VΩHz ports for voltage, resistance, or frequency measurements
Activate NCV mode to detect live wires without touching them
Use the HOLD, MAX/MIN, and ZERO buttons to freeze or reset readings as needed
For temperature, connect the thermocouple and switch to the °C mode

Rate this Product

There have been no reviews for this product yet.

UNI-T UT204+ Digital Clamp Meter In Bangladesh

The UNI-T UT204+ Digital Clamp Meter in Bangladesh. Get the original products at the most affordable price at KODDAX and enjoy the quality with the promise of the best customer service in Bangladesh.

True RMS for precise readings on non-linear loads
Measures up to 600A AC/DC current and 600V AC/DC voltage
NCV function for safe non-contact voltage detection
Temperature measurement with included thermocouple
Frequency and duty cycle analysis
Auto range and data hold functionality
MAX/MIN recording and ZERO reset
Large LCD screen with backlight for low-light use
CAT III 300V / CAT II 600V safety rating
Durable clamp with 28mm jaw opening

Specifications

Voltage Range: 600V AC/DC
Current Range: 600A AC/DC
Capacitance: Up to 60mF
Resistance: Up to 60MΩ
Frequency: Up to 10MHz
Temperature: -40°C to 1000°C
Display Count: 6000
Clamp Opening: 28mm
Safety Rating: CAT III 300V / CAT II 600V
Power Supply: 2 x AAA batteries
Dimensions: 215mm x 63mm x 36mm
Weight: Approx. 280g

How It Works

Rotate the dial to select the desired measurement mode (AC/DC current, voltage, resistance, etc.)
Use the clamp to measure current without direct contact by clamping around the conductor
Insert test leads into the COM and VΩHz ports for voltage, resistance, or frequency measurements
Activate NCV mode to detect live wires without touching them
Use the HOLD, MAX/MIN, and ZERO buttons to freeze or reset readings as needed
For temperature, connect the thermocouple and switch to the °C mode
